Call by: SPRING Calculation Balancing Line…

This function can be used to calculate flows over element edges. After selecting the function, a polyline can be drawn over element edges, whereby any points in the model area can be selected. The path over the element edges is determined automatically and displayed in a live preview. Right-click to confirm the currently drawn line. In 3D models, one or more layers can then be selected for balancing. The rates described above are calculated and summarised in a window. The flow direction is defined in the drawing direction of the line.

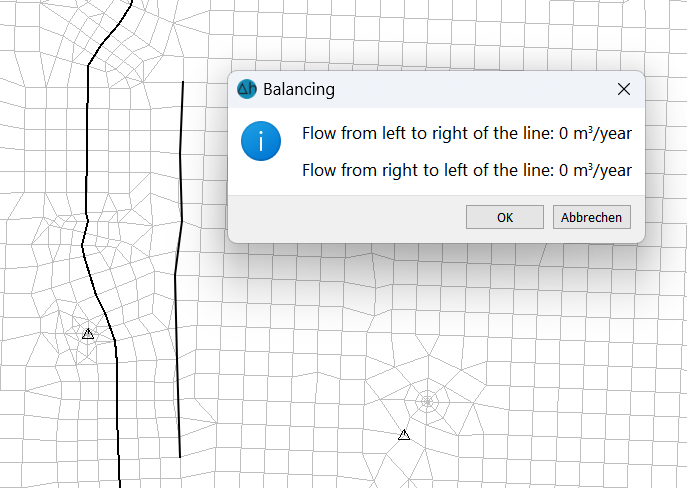

Balancing along a drawn line
